Advantages
The main advantage of using a self-equalizing anchor is that it continues to distribute the load equally between the anchor pieces as the loading direction changes. This maintains a lower force on each piece, therefore decreasing the likelihood of anchor point failure. This is especially useful when equalizing marginal pieces of lead protection.

Disadvantages
The main disadvantage of using self-equalizing knots at the anchor is that if one piece fails, the whole belay shifts. This shift is barely noticeable on a well set up anchor. However, with some setups the sudden jolt could cause you to lose control of your belay device. Be careful where you use self-equalizing anchors and make sure to tie appropriate extension-limiting knots to reduce the possible sudden shift in belay position.

Example
If two micro nuts are equalized with an overhand knot as shown, it is likely that one of them would take most of the force of a leader fall.

This could be due to a slightly off-centre adjustment of the knot, or a slightly different loading direction (you may not fall directly downwards). If the fall generates 4kN of force, it will cause the 3kN piece on the right to fail.

equalize climbing anchor

This will put 100% of the force on the remaining piece, which will most likely cause that to fail too.

equalise climbing anchor

If the same two micro nuts were equalized with a sliding-X, the knot would self-equalize during the fall and distribute 50% of the force (2kN) onto each nut. The nuts would then be much more likely to hold the fall.

sliding-x climbing knot

The Sliding-X

The sliding-X is useful for:

- Equalizing two pieces of trad gear as part of a more complicated anchor
- Equalizing two pieces of lead protection
- Equalizing a two-bolt anchor for top roping

Step 1
Clip a sling through two pieces of gear.

Make sure the sewn section of the sling is near the top of one of the pieces so it doesn’t interfere with the sliding-X knot.



Step 2

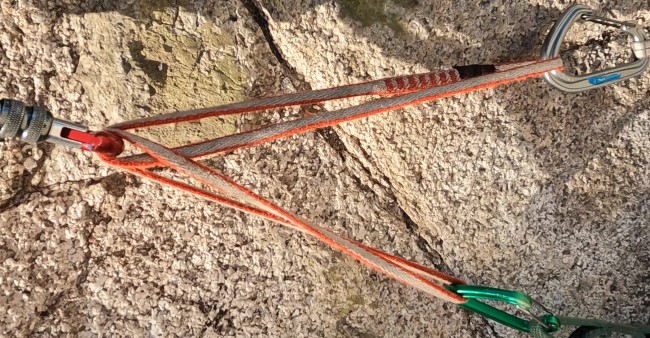

Twist the sling 180 degrees and then attach a carabiner to it. The central point will now be equalized even when the pull comes from different directions.

sliding-x equalizing climbing anchor

Step 3
Position the central point where you want it. Unclip the sling from one piece and tie an overhand knot near to the central point.

This is known as an extension-limiting knot. The closer to the central point you tie them, the less the anchor will extend if one piece fails.



Step 4
Clip the sling back into the piece.

equalize climbing anchor sliding x

Step 5
Repeat steps 3 and 4 with the other side.

You can now adjust the overhand knots so they are as far down as possible while still allowing the central point to move freely where it needs to.

sliding-x trad climbing anchor

If one piece fails, the central point will shift as shown.

how to tie a sliding x climbing anchor

Warning!
1) It’s essential that you twist the sling in step 2. If you don’t, the central point can become completely detached from the anchor if one piece fails.

how not to tie a sliding x climbing anchor

2) It can be difficult to clip another carabiner into the main point of a sliding-X when it is weighted. If you must do so, make sure you have clipped the carabiner through the sling in exactly the same way as the original carabiner. A much better alternative is to use the quad anchor.



Sliding-X Variations

There are many ways of incorporating the sliding-X into an anchor. However you do it, make sure that if any piece failed, the resulting anchor shift:
- Is minimal
- Causes the remaining pieces to re-equalize
- Will not cause you to lose control of the belay

The following arrangement uses one double-length sling to equalize three pieces.

Step 1
Clovehitch a double-length sling to the lower right piece.

how to tie a sliding-x climbing anchor

Step 2
Clip the sling through the upper right piece.

how to tie a sliding x climbing anchor

Step 3
Add two extension-limiting knots.

how to tie a sliding-x climbing anchor

Step 4
Clip the sling into the left piece.

Adjust the knots so they limit extension while allowing for some directional movement.

how to tie a sliding x climbing anchor

Step 5
Put a 180 degree twist in one of the master point strands and clip a carabiner through both loops as shown.

how to tie a sliding x climbing anchor


You could also equalize four pieces by clovehitching another piece on the left.

You may need to adjust the extension-limiting knots after adding the fourth piece.

how to tie a sliding x climbing anchor

If your belay consists of one bomber piece (the bolt) and four mediocre pieces (the micro nuts), you could use an arrangement like this.

This method equalizes the pieces so the bolt takes 50% of the load and the four micro nuts take 12.5% each.

how to tie a sliding x climbing anchor
